American Model | DC Solar Pedestal Fan

Name: American Model | DC Solar Pedestal Fan
Brand: Premium Quality
SKU: American Model DC Solar Pedestal Fan
Price: 6100.00 PKR
Availability: InStock
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

Brands:

₨6,100.00

American DC 20″ pedestal fan runs on direct current (DC) power, making it highly energy-efficient and quieter than traditional fans. It’s portable, height-adjustable, and provides smooth, consistent airflow, ideal for eco-friendly cooling in homes and offices.

color

Description

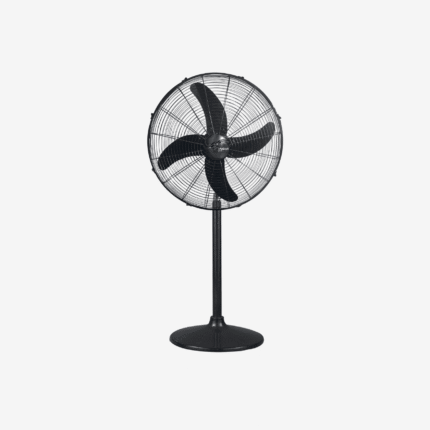

American Model | DC Pedestal Fan

The American Model DC Pedestal Fan delivers powerful airflow with energy-efficient DC motor technology. Designed for smooth and reliable cooling, it is ideal for homes, offices, shops, and commercial spaces. Its adjustable pedestal design allows you to easily direct airflow for maximum comfort.

Key Features

Energy-Efficient DC Motor
Powerful & Smooth Airflow
Low Power Consumption
Height-Adjustable Design
Adjustable Airflow Direction
Quiet & Reliable Operation
Durable Construction
Suitable for Home & Commercial Use

Enjoy efficient, comfortable, and reliable cooling with the American Model DC Pedestal Fan, designed for everyday performance with reduced power consumption.

Additional information

color	Black
Size	20″
Height	Adjustable Stand
Motor Type	DC Belino
DC Ampere	2-3 Amp
Input Voltage Dc	12V
Blade	4
RPM	1400-1450
Speed	3

Reviews (1)

1 review for American Model | DC Solar Pedestal Fan

Iqra – April 25, 2025

Rated 5 out of 5
Work smooth on battery

Add a review

INSTALLATION GUIDE

1.Unbox and Inspect:

•Carefully remove all components from the packaging.

•Verify that all parts are present: fan head assembly, pedestal stand, base, screws, and remote control (if included).

2.Assemble the Pedestal Stand:

•Attach the pedestal stand to the base using the provided screws.

•Ensure the connection is secure to prevent wobbling.

3.Attach the Fan Head:

•Align the fan head with the pedestal stand.

•Secure the fan head to the stand using the locking mechanism or screws provided.

4.Install the Blades:

•If the blades are not pre-installed, carefully insert them into the motor housing, ensuring they are tightly fitted.

5.Install the Grills (If Separate):

•Place the front and rear grills over the blades, securing them with clips or screws.

6.Adjust the Height:

•Adjust the pedestal height to your preferred position by unlocking the height adjustment mechanism and locking it in place once set.

7.Connect to Power Source:

•Plug the fan into a standard 220-240V AC power outlet.

•Ensure the power cord is not in a position where it could be damaged.

8.Test the Fan:

•Turn on the fan using the control panel or remote.

•Test the speed settings and oscillation function.

9.Safety Check:

•Ensure the fan is stable and the base is not wobbly.

•Check that the motor is running smoothly without unusual noise.

How to Connect DC Pedestal

1. Ensure the fan is switched OFF before making any connections.
2. Connect the positive (+) terminal of the battery to the positive (+) wire/terminal of the fan.
3. Connect the negative (-) terminal of the battery to the negative (-) wire/terminal of the fan.
4. Make sure all connections are secure and properly insulated.
5. Turn ON the battery supply.
6. Switch ON the fan.
7. The fan is now ready for operation using battery power.

SKU: American Model DC Solar Pedestal Fan Categories: DC Solar, Pedestal Fans
