Standard Model | AC-220V Pedestal Fan
₨16,200.00
American Model | DC Solar Pedestal Fan
₨6,100.00

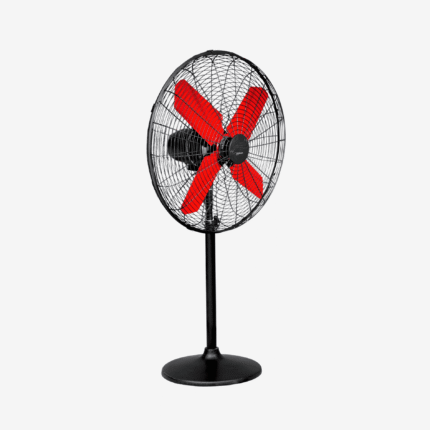

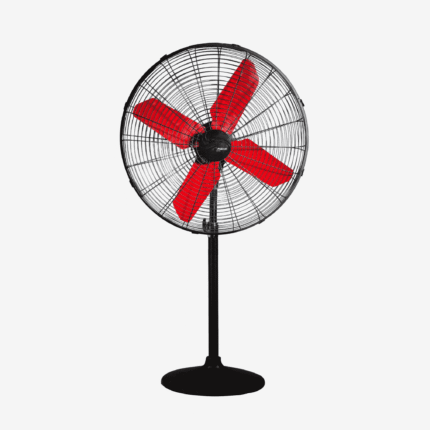

Standard Model | BLDC Pedestal Fan
Brands:
₨16,000.00
Standard AC/DC pedestal fan operates on both alternating current (AC) and direct current (DC) power, offering versatility and energy efficiency. It’s height-adjustable, portable, and ideal for reliable cooling during power fluctuations or outages.
Description
Energy Efficient Performance
Advanced AC/DC technology delivers powerful airflow while helping reduce energy consumption and electricity costs.
Modern & Stylish Design
Designed with a sleek and elegant look that complements modern homes, offices, shops, and commercial spaces.
Reliable & Durable Motor
Built with quality components and a durable motor to provide smooth, dependable performance for everyday use.
Quiet & Comfortable Operation
Enjoy smooth and quiet airflow with minimal noise, creating a comfortable environment for home and commercial spaces.
Additional information
| color | Black, Red-Black |
|---|---|
| Size | 24″ |
| Height | Adjustable Stand |
| Motor Type | BLDC |
| Rated Power | 80-90 Watts |
| DC Ampere | 5-6 Amp |
| Blade | 4 |
| RPM | 1300-1350 |
| Speed | 6 |
| Remote Control | (RF) |
| RF | Radio Frequency With Digital Screen |
Reviews (1)
1 review for Standard Model | BLDC Pedestal Fan
INSTALLATION GUIDE
1. Unbox and Inspect:
•Carefully remove all components from the packaging.
•Verify that all parts are present: fan head assembly, pedestal stand, base, screws, and remote control (if included).
2.Assemble the Pedestal Stand:
•Attach the pedestal stand to the base using the provided screws.
•Ensure the connection is secure to prevent wobbling.
3.Attach the Fan Head:
•Align the fan head with the pedestal stand.
•Secure the fan head to the stand using the locking mechanism or screws provided.
4.Install the Blades:
•If the blades are not pre-installed, carefully insert them into the motor housing, ensuring they are tightly fitted.
5.Install the Grills (If Separate):
•Place the front and rear grills over the blades, securing them with clips or screws.
6.Adjust the Height:
•Adjust the pedestal height to your preferred position by unlocking the height adjustment mechanism and locking it in place once set.
7.Connect to Power Source:
•AC Operation:
•Plug the fan into a standard 220-240V AC power outlet.
•DC Operation:
•Connect the fan to a 12V DC power source, such as a compatible battery or solar panel.
•Ensure the power source is fully charged or connected to avoid power loss.
8.Test the Fan:
•Turn on the fan using the control panel or remote.
•Test the speed settings and oscillation function.
9.Safety Check:
•Ensure the fan is stable and the base is not wobbly.
•Check that the motor is running smoothly without unusual noise.
Product Warranty For Ac/Dc
Terms And Conditions
Fusion Fans offers a 2-year warranty on the motors of their inverter fans. This warranty covers manufacturing defects and ensures reliable performance during this period. It’s important to note that plastic body parts are not covered under this warranty.
1. Coverage Details:
•Parts: The warranty usually covers defects in materials and workmanship for all major components, including the motor, blades, and any electronic controls.
•Labor: Some manufacturers include labor costs for repairs or replacements, while others may cover only the parts.
2.Exclusions:
•Improper Installation: Damage resulting from incorrect installation is generally not covered.
•Misuse: Any damage caused by misuse or abuse of the fan is typically excluded.
•Natural Disasters: Warranties generally do not cover damages from natural disasters like floods or earthquakes.
•Normal Wear and Tear: Issues arising from regular use over time are often not included.
•Unauthorized Repairs: Any repairs made by unauthorized service providers may void the warranty.
3.Registration: Many manufacturers require customers to register their fusion fan online to activate the warranty. This can usually be done through the manufacturer’s website.
4.Claim Process:
•Documentation: Keep the original receipt and warranty information for claims.
•Contact Manufacturer: In case of a defect, contact the manufacturer’s customer service for guidance on how to proceed with a warranty claim.
5.Variations by Brand: Warranty policies can vary significantly between brands and models, so it’s essential to review the specific warranty terms for the fusion fan you purchase.
6.Replacement Warranty is valid for 10 Days only from the date of purchase after that product will be replaced instead charges will bi applied for any components repair and replacement.
How to Connect AC/DC
- * Turn on fan
* As soon as you turn on the fan press ON/OFF button
* Hold the button for 10-15 sec
* You will hear the beep sound
* Your fan has been paired with your remote.
